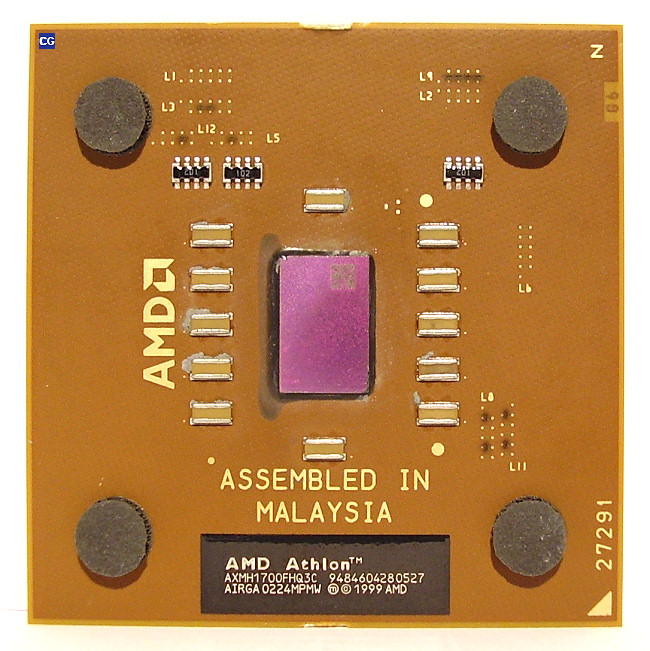

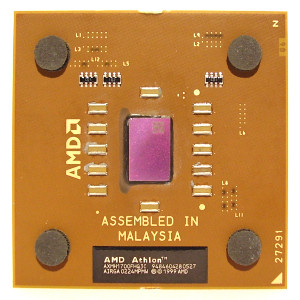

AMD K7 Athlon XP-M Mikroprozessor Spezifikationen

zurück

Prozessorfamilie:

AMD Athlon XP-M

Prozessor:

1700+

OPN:

AXMH1700FHQ3C

Prozessor Stepping Code:

AIRGA

Markteinführung:

17.04.2002

Marktsegment:

Mobile

Prozessortakt:

1,467 GHz

Front Side Bus (FSB):

133 MHz / 266 MHz (Double Data Rate) 2,1 GB/s

Taktmultiplikator:

11

Prozessortyp:

453-pin Organic Pin Grid Array

Gehäusenummer:

27291, 27648

Sockel:

A (Sockel 462)

Low-Power Unterstützung:

PowerNow! Technology
 - dynamische Reduzierung von Spannung und Takt bei niedriger Auslastung der CPU
Powermanagement
 - Halt state
 - Stop grant state
 - Sleep state
 - Probe state
System Management Mode

Kernspannung:

1,55 Volt

Temperaturbereich (min/max):

0°C - 100°C

Verlustleistung (max):

45 Watt















Mikroarchitektur:

K7 QuantiSpeed Microarchitektur
 - nine-issue, superscalar, fully-pipelined core

Prozessorkern:

Thoroughbred

Fertigungstechnologie:

0,13 µm copper process CMOS (Complementary Metal Oxide Semiconductor)

Transistoren:

37.200.000

Befehlssatzerweiterung:

3DNow! Professional, Enhanced 3DNow!, MMX und SSE Extensions

Datenbusbreite:

64 Bit

Datenbreite:

32 Bit

Adressierbarer Speicher:

4 GB

Virtuelle Speichergröße:

64 TB

Koprozessor:

On-Chip integriert

Integrierte Komponenten:

128 KB Level1 Cache:

- 2-way set associative
- separater 64 KB Befehlscache
- separater 64 KB Datencache

256 KB Level2 Cache:

- 16-way set associative
- gemeinsamer Befehls- und Datencache
- ECC (error correcting code) geschützt

Advanced two-level, Translation Look-aside Buffer (TLB)
Multiple x86 instruction decoders
Superscalar, fully pipelined, out-of-order, three-way floating-point engine
Three independent integer pipelines
Three address calculation pipelines

Integrierte Funktionen:

Hardware data prefetch

Anmerkung:

Desktop Replacement Prozessor
Verwendung des Performance Rating
