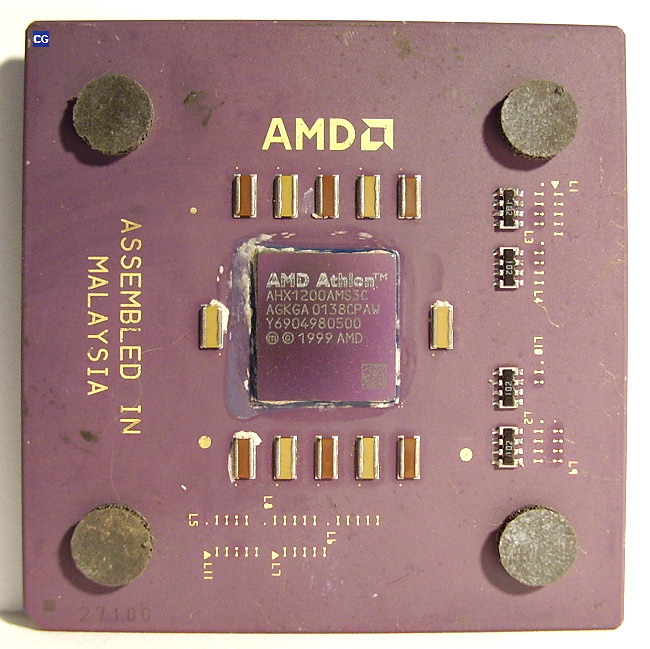

AMD K7 Athlon MP Mikroprozessor Spezifikationen

zurück

Prozessorfamilie:

AMD Athlon MP

Prozessor:

1200

OPN:

AHX1200AMS3C

Prozessor Stepping Code:

AGKDA, AGKFA, AGKGA

Markteinführung:

05.06.2001

Marktsegment:

Server

Prozessortakt:

1,2 GHz

Front Side Bus (FSB):

133 MHz / 266 MHz (Double Data Rate) 2,1 GB/s

Taktmultiplikator:

9

Prozessortyp:

453-pin staggered Ceramic Pin Grid Array

Gehäusenummer:

27100

Sockel:

A (Sockel 462)

Low-Power Unterstützung:

Powermanagement
 - Halt state
 - Stop grant state
 - Sleep state
 - Probe state
System Management Mode

Kernspannung:

1,75 Volt

Temperaturbereich (min/max):

0°C - 95°C

Verlustleistung (min/normal/max):

2 Watt (Stop Grant) / 49,1 Watt / 54,7 Watt















Mikroarchitektur:

K7 QuantiSpeed Microarchitektur
 - nine-issue, superscalar, fully-pipelined core

Prozessorkern:

Palomino

Modell:

Model 6

Fertigungstechnologie:

0,18 µm CMOS (Complementary Metal Oxide Semiconductor)

Transistoren:

37.500.000

Befehlssatzerweiterung:

3DNow! Professional, Enhanced 3DNow!, MMX und SSE Extensions

Datenbusbreite:

64 Bit

Datenbreite:

32 Bit

Adressierbarer Speicher:

4 GB

Virtuelle Speichergröße:

64 TB

Koprozessor:

On-Chip integriert

Multiprozessorunterstützung:

ja, bis zu 2 Prozessoren

Integrierte Komponenten:

128 KB Level1 Cache:

- 2-way set associative
- separater 64 KB Befehlscache
- separater 64 KB Datencache

256 KB Level2 Cache:

- 16-way set associative
- gemeinsamer Befehls- und Datencache

Advanced two-level, Translation Look-aside Buffer (TLB)
Multiple x86 instruction decoders
Superscalar, fully pipelined, out-of-order, three-way floating-point engine
Three independent integer pipelines
Three address calculation pipelines

Integrierte Funktionen:

Hardware data prefetch

Anmerkung:

Verwendung des Performance Rating
